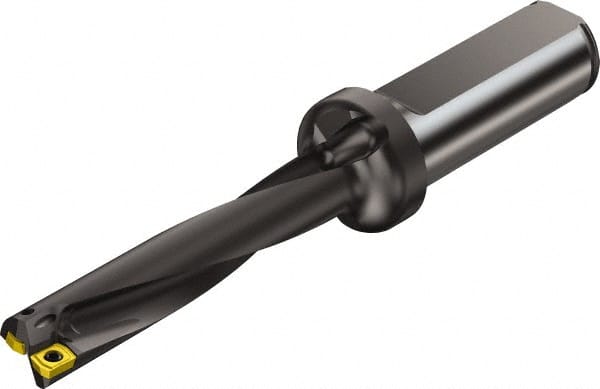

Sandvik Coromant - 3.4112" Max Drill Depth, 5xD, 0.656" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 41912692
Brand: Sandvik Coromant
Model #: 5724449
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-05 |
| Drill Diameter (Decimal Inch) | 0.6560 |
| Maximum Drill Depth (Decimal Inch) | 3.4112 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.6 |
| Insert Size (Decimal Inch) | 0.1024 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7032 |
| Maximum Drill Diameter (mm) | 16.66 |
| Overall Length/Projection (mm) | 151.24 |
| Overall Length/Projection (Decimal Inch) | 5.9545 |
| Insert Compatibility (Outside or Peripheral) | 03P |
| Flute Length (mm) | 96.24 |
| Flute Length (Decimal Inch) | 3.7889 |
| Body Length (Decimal Inch) | 3.4110 |
| Body Length (mm) | 86.64 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Radius (Decimal Inch) | 0.3280 |
| Series | CoroDrill 880 |
