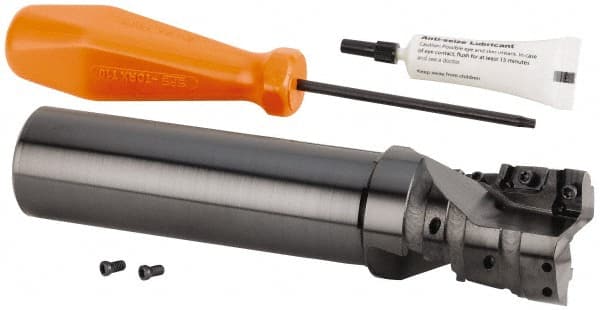

Kennametal - 50.39mm Cut Diam, 54mm Max Depth of Cut, 1-1/2" Shank Diam, 168.88mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 1604.., JOMT 1604.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series KDMR
Item #: 41917139
Brand: Kennametal
Model #: 3578446
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.39 |
| Cutting Diameter (Decimal Inch) | 1.9840 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length/Projection (mm) | 168.88 |
| Overall Length/Projection (Decimal Inch) | 6.6490 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 54.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.1260 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 68.88 |
| Head Length (Decimal Inch) | 2.7120 |
| Weldon Flat | No |
| Insert Compatibility | GOMT 1604..; JOMT 1604.. |
| Shank Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 100.00 |
