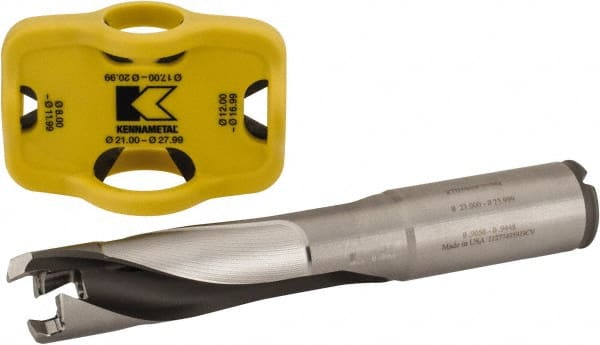

Kennametal - 23 to 24mm Diam, 3xD, 2.83" Max Depth, 15/16" Shank Diam, 3.98" Flute, 6-1/4" OAL, Replaceable Tip Drill - ZB Seat Size, Series KenTIP
Item #: 41948282
Brand: Kennametal
Model #: 3789796
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 23.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.9449 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.8300 |
| Shank Diameter (Decimal Inch) | 0.9375 |
| Insert Seat Size | ZB |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1560 |
| Flute Length (Decimal Inch) | 3.9800 |
| Overall Length (Decimal Inch) | 6.2500 |
| Shank Length (Decimal Inch) | 2.1500 |
