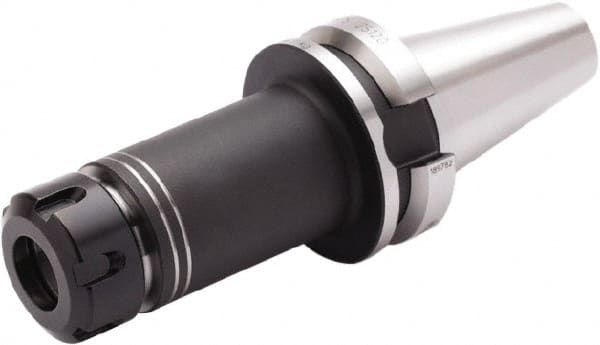

Seco - 0.079" to 0.787" Capacity, 5.906" Projection, BT50 Taper Shank, ER32 Collet Chuck - 9.913" OAL
Item #: 42045070
Brand: Seco
Model #: 66034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Projection (Decimal Inch) | 5.9060 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0790 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 9.9130 |
| Nose Diameter (Decimal Inch) | 1.9690 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.6540 |
