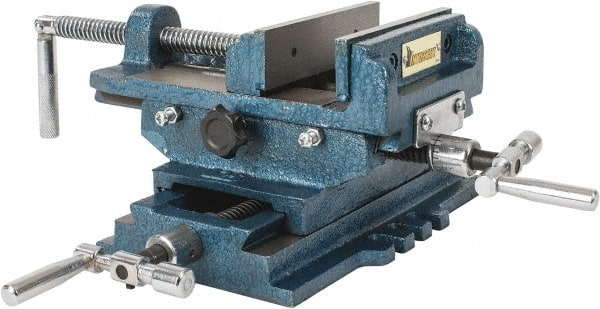

Interstate - 5-5/16" Jaw Opening Capacity x 1-5/16" Throat Depth, Horizontal Drill Press Vise - 5" Wide x 1-5/16" High Jaw, Cross Slide Base, Standard Speed, 10" OAL x 5.3" Overall Height, Cast Iron
Item #: 42053850
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Cross slide drill press vises allow for precise workpiece positioning by X and Y-axis travel (left/right and forward/back) motion.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 5 |
| Jaw Opening Capacity (Inch) | 5-5/16 |
| Jaw Opening Capacity (Decimal Inch) | 5.3125 |
| Throat Depth (Inch) | 1-5/16 |
| Throat Depth (Decimal Inch) | 1.3125 |
| Orientation Type | Horizontal |
| Base Motion Type | Cross Slide |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 10 |
| Overall Height (Decimal Inch) | 5.3000 |
| Vise Material | Cast Iron |
| Jaw Height (Inch) | 1-5/16 |
| Jaw Height (Decimal Inch) | 1.3125 |
