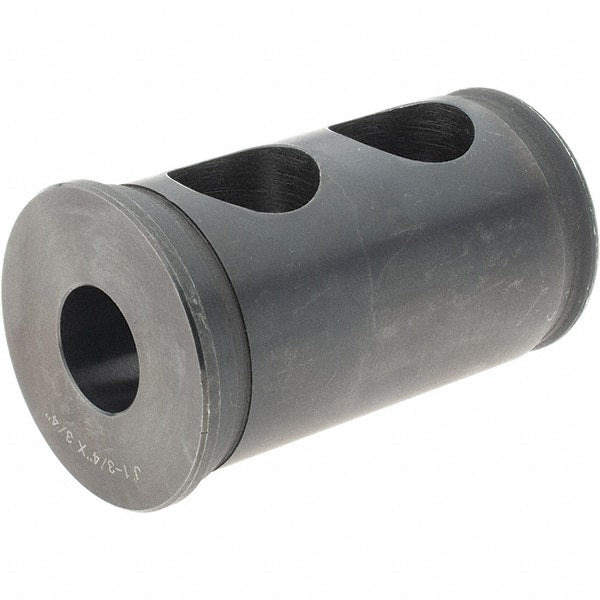

Interstate - 3/4" ID, 1-3/4" OD, 3" Length Under Head, Type J Lathe Tool Holder Bushing - 3/16" Head Thickness
Item #: 42056739
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
J toolholder bushings are designed with a long solid body and two cearance holes for set screw clamping directly onto the tool.
| Product Specifications | |
|---|---|
| Type | J |
| Outside Diameter (Decimal Inch) | 1.7500 |
| Outside Diameter (mm) | 44.45 |
| Outside Diameter (Inch) | 1-3/4 |
| Inside Diameter (Inch) | 3/4 |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Head Thickness (Inch) | 3/16 |
| Head Thickness (Decimal Inch) | 0.2950 |
| Length Under Head (mm) | 76.20 |
| Length Under Head (Inch) | 3 |
| Length Under Head (Decimal Inch) | 3.0000 |
| Distance Between Hole Centers (Inch) | 1-1/4 |
