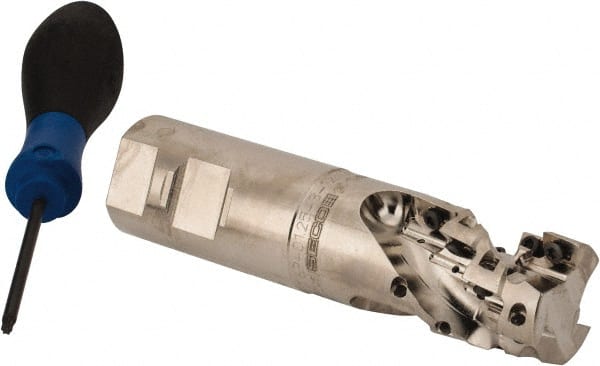

Seco - 1-1/4" Cut Diam, 1.73" Max Depth of Cut, 1-1/4" Shank Diam, 5" OAL, Indexable Square Shoulder Helical End Mill - XO.X 1204 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 42060673
Brand: Seco
Model #: 58582
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 5.0000 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.7300 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R217.69-12 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 2.7500 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.X 1204 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum RPM | 18400 |
| Toolholder Material | Steel |
