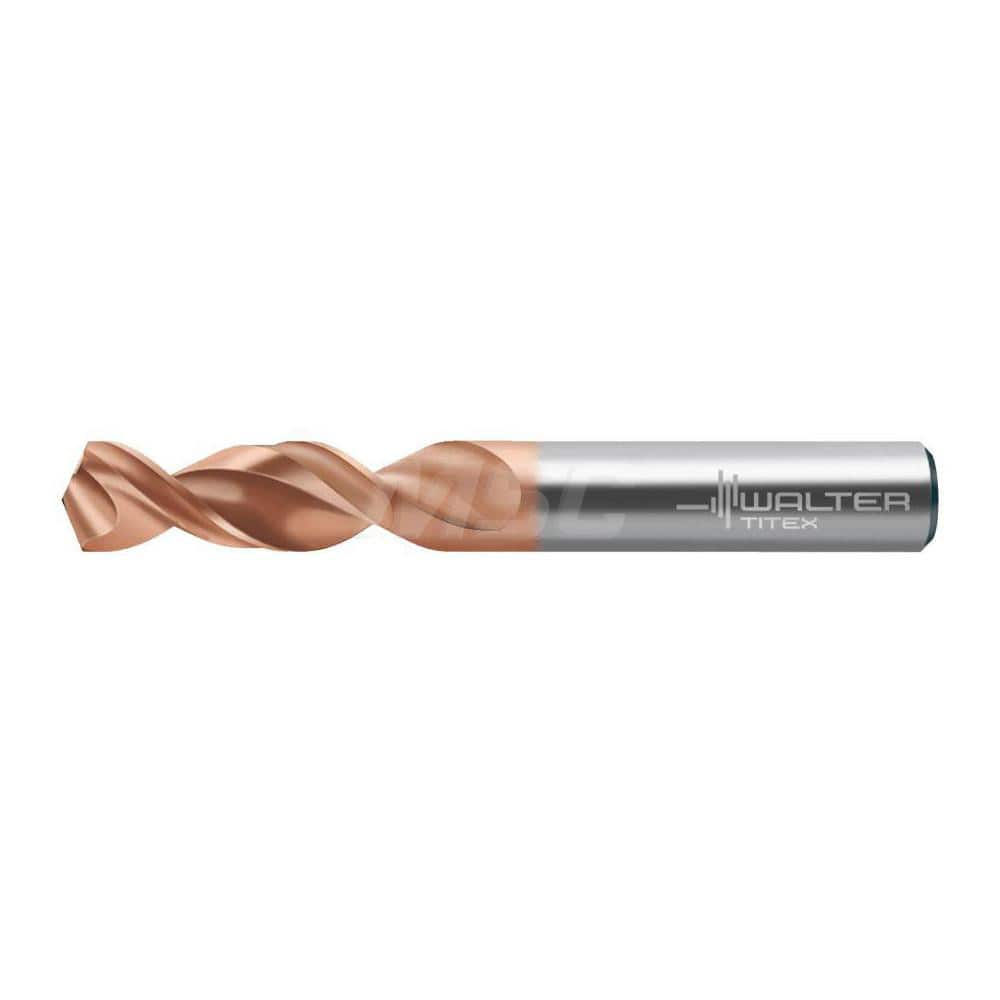

Screw Machine Length Drill Bit: 0.073″ Dia, 130 °, Cobalt Coated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A1149XPL
Item #: 42104349
Brand: Walter-Titex
Model #: 5337193
Product Specifications
| Drill Bit Size (Wire) | #49 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 130 |
| Flute Type | Parabolic |
| Point Type | Conical+C |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0728 |
| Drill Bit Size (Decimal Inch) | 0.0730 |
| Overall Length (mm) | 36.00 |
| Overall Length (Decimal Inch) | 1.4173 |
| Shank Diameter (mm) | 1.85 |
| Series | A1149XPL |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.3150 |
| Maximum Drilling Depth (mm) | 8.00 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 25.00 |
| Drill Point Length (mm) | 0.43 |
| Drill Point Length (Decimal Inch) | 0.0170 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | h8 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.4331 |
| Flute Length (mm) | 11.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M35 |
 | |
| MSC Part # | 42104349 |
| Mfr Part # | 5337193 |
| Country of OriginCountry of Origin is subject to change | Brazil |
