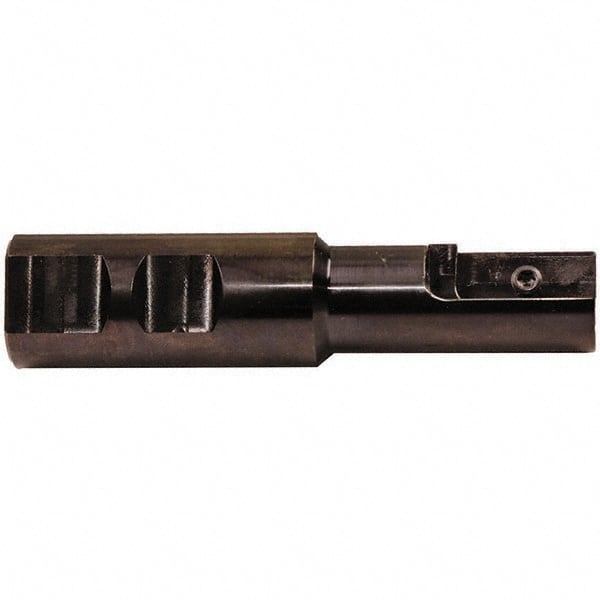

Emuge - 60mm Max Hole Depth, 20mm Shank Diam, Internal Indexable Thread Mill - 15mm Insert Size, 1 Insert, 110mm OAL
Item #: 42132530
Brand: Emuge
Model #: GZ301340
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
| Insert Size (mm) | 15.00 |
| Insert Size (Decimal Inch) | 0.5906 |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal |
| Through Coolant | Through Coolant |
| Neck Diameter (mm) | 17.00 |
