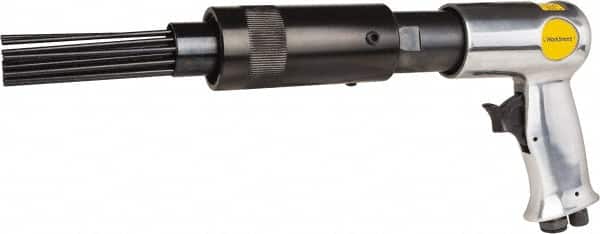

Value Collection - 3,200 BPM, 19mm Bore Diam, Pneumatic Pistol Grip Needle Scaler - 1/8" Needle Diam, 7.1" Needle Length, 1-7/8" Stroke Length, 4 CFM, 90 psi, 1/4 NPT Inlet
Item #: 42183558
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Pistol grip handles are positioned on the rear end of the tool. It is commonly used for vertical operations.
| Product Specifications | |
|---|---|
| Type of Power | Pneumatic |
| Handle Type | Pistol Grip |
| Blows Per Minute | 3200 |
| Bore Diameter (mm) | 19.00 |
| Bore Diameter (Decimal Inch) | 0.7480 |
| Needle Diameter (mm) | 3.00 |
| Needle Diameter (Inch) | 1/8 |
| Needle Diameter (Decimal Inch) | 0.1200 |
| Needle Length (mm) | 180.00 |
| Needle Length (Inch) | 7.1 |
| Stroke Length (Inch) | 1-7/8 |
| Stroke Length (Decimal Inch) | 2.6250 |
| Air Consumption (CFM) | 4.00 |
| Air Consumption (LPS) | 1.89 |
| Air Consumption (LPM) | 113.00 |
| Air Pressure (bar) | 6.21 |
| Air Pressure (psi) | 90.00 |
| Air Pressure (kPa) | 620.00 |
| Inlet Size (Inch) | 1/4 |
| Inlet Size (Decimal Inch) | 0.2500 |
| Inlet Size (NPT) | 1/4 |
| PSC Code | 5130 |
