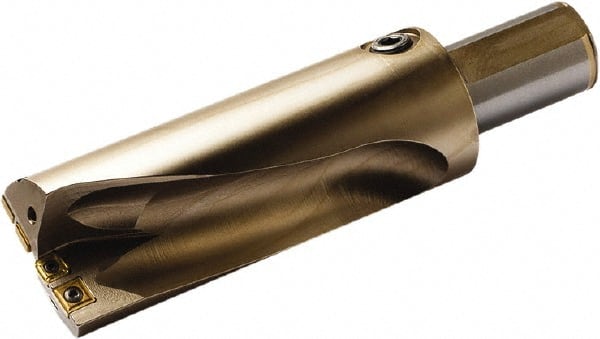

Seco - 200mm Max Drill Depth, 2.5xD, 80mm Diam, Indexable Insert Drill - 4 Inserts, 50mm Shank Diam, Straight Shank
Item #: 42197343
Brand: Seco
Model #: 34751
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD542 |
| Drill Diameter (mm) | 80.00 |
| Drill Diameter (Decimal Inch) | 3.1496 |
| Maximum Drill Depth (mm) | 200.00 |
| Maximum Drill Depth (Decimal Inch) | 7.8740 |
| Shank Type | Straight |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Number of Drill Inserts | 4 |
| Overall Length/Projection (mm) | 329.50 |
| Overall Length/Projection (Decimal Inch) | 12.9724 |
| Insert Compatibility (Outside or Peripheral) | SCGX 120408.. |
| Insert Compatibility | SPGX 12T3-C1 |
| Flute Length (mm) | 210.00 |
| Flute Length (Decimal Inch) | 8.2677 |
| Body Length (Decimal Inch) | 9.9016 |
| Body Length (mm) | 251.50 |
| Shank Length (mm) | 78.00 |
| Shank Length (Decimal Inch) | 3.0709 |
| Collar Diameter (mm) | 79.00 |
| Collar Diameter (Decimal Inch) | 3.1102 |
| Series | PerfoMAX |
