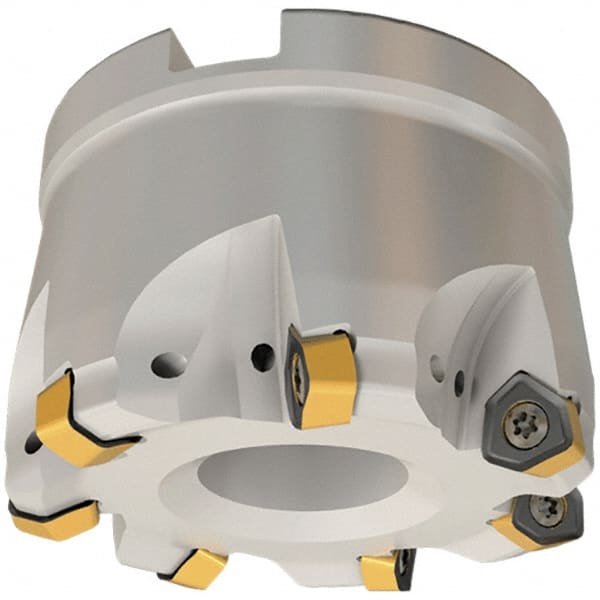

Iscar - 5 Inserts, 2.48" Cutter Diam, 0.079" Max Depth of Cut, Indexable High-Feed Face Mill - 1.063" Arbor Hole Diam, 0.488" Keyway Width, 1.969" High, FF FWX-08 Toolholder, H600 WXCU 08 Inserts, Series Helido
Item #: 42216598
Brand: Iscar
Model #: 3191312
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4800 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | Helido |
| Cutter Style | FF FWX-08 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | H600 WXCU 08 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.4800 |
| Through Coolant | Yes |
| Complete Insert Compatibility | H600 WXCU 08 |
| Keyway Width (Decimal Inch) | 0.4880 |
