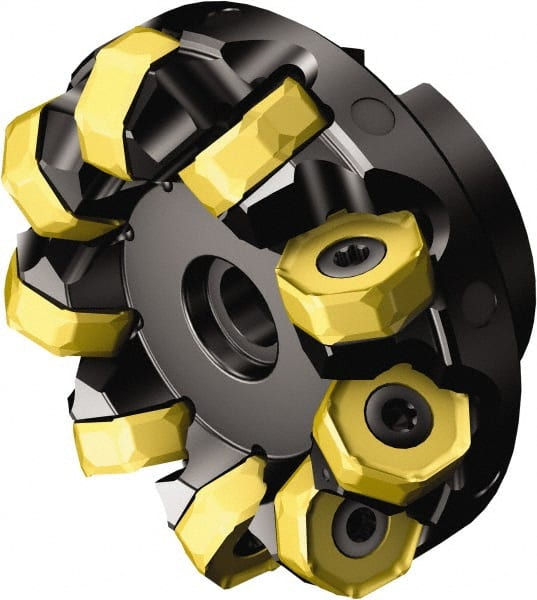

Sandvik Coromant - 8" Cut Diam, 2-1/2" Arbor Hole, 5.2mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 21 Inserts, 745R-2109 Insert, Right Hand Cut, 21 Flutes, Through Coolant, Series Coromill 745
Item #: 42251603
Brand: Sandvik Coromant
Model #: 6702272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 8 |
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 2.4800 |
| Overall Height (mm) | 62.99 |
| Insert Compatibility | 745R-2109 |
| Series | Coromill 745 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.20 |
| Number of Cutter Inserts | 21 |
| Insert Holding Method | Screw |
| Number of Flutes | 21 |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Hub Diameter (mm) | 130.00 |
| Maximum Body Diameter (Decimal Inch) | 8.5470 |
| Maximum RPM | 3296 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
