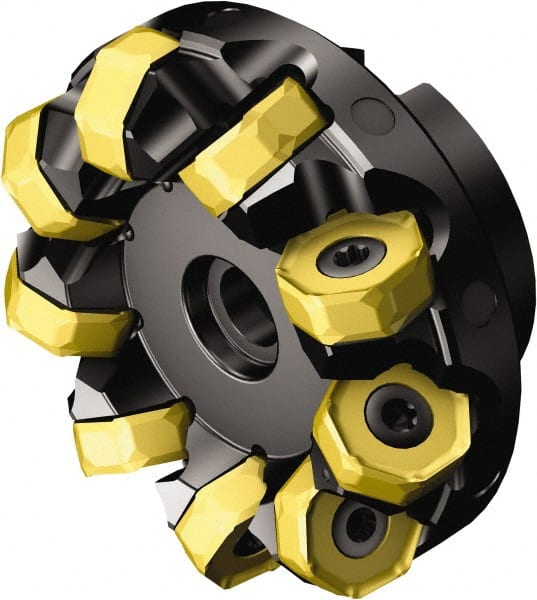

Sandvik Coromant - 6" Cut Diam, 1-1/2" Arbor Hole, 5.2mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 10 Inserts, 745R-2109 Insert, Right Hand Cut, 10 Flutes, Through Coolant, Series Coromill 745
Item #: 42251660
Brand: Sandvik Coromant
Model #: 6702269
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 2.4800 |
| Overall Height (mm) | 62.99 |
| Insert Compatibility | 745R-2109 |
| Series | Coromill 745 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.20 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 3.4250 |
| Hub Diameter (mm) | 87.00 |
| Maximum Body Diameter (Decimal Inch) | 6.5470 |
| Maximum RPM | 3773 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
