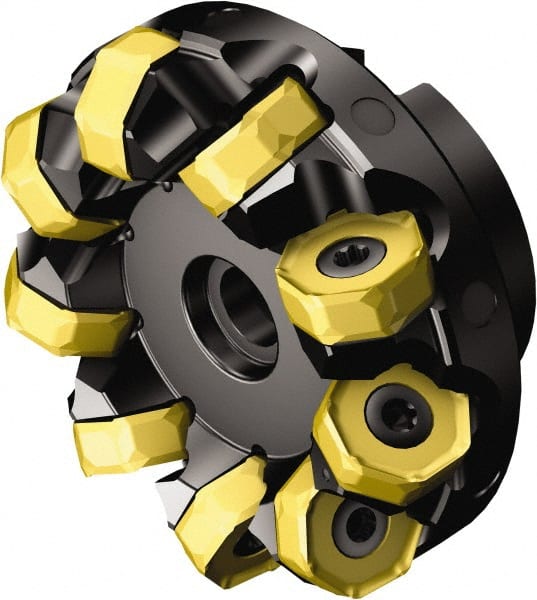

Sandvik Coromant - 200mm Cut Diam, 60mm Arbor Hole, 5.2mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 14 Inserts, 745R-2109 Insert, Right Hand Cut, 14 Flutes, Through Coolant, Series Coromill 745
Item #: 42251884
Brand: Sandvik Coromant
Model #: 6702247
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Lead Angle | 42 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | 745R-2109 |
| Series | Coromill 745 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.20 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Number of Flutes | 14 |
| Hub Diameter (Decimal Inch) | 5.1575 |
| Hub Diameter (mm) | 131.00 |
| Maximum Body Diameter (Decimal Inch) | 8.4213 |
| Maximum RPM | 3292 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
