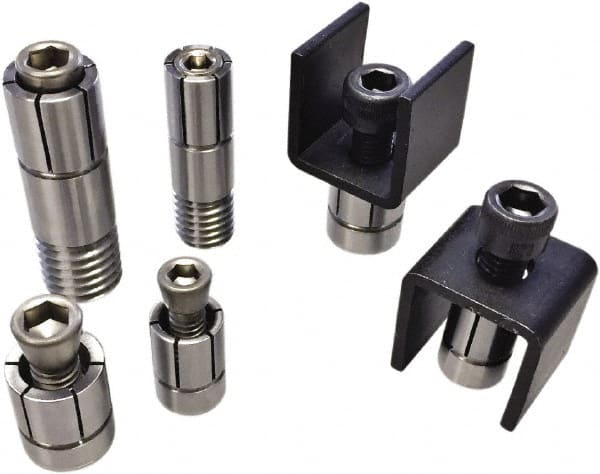

Mitee-Bite - 0.2362 to 0.015" Expansion Diam, 500 Lb Holding Force, M3x0.5 Center Screw, Stainless Steel ID Expansion Clamp - 1/4" Mount Hole Diam, 1 Mount Hole
Item #: 42285742
Brand: Mitee-Bite
Model #: 38730
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is made of iron and chromium and is resistant to rust and corrosion. It offers high tensile strength and can be used in several environments.
| Product Specifications | |
|---|---|
| Flange Diameter (mm) | 6.00 |
| Maximum Expansion Diameter (Decimal Inch) | 0.0150 |
| Minimum Expansion Diameter (Decimal Inch) | 0.2362 |
| Holding Force (Lb.) | 500.00 |
| Center Screw Thread Size | M3x0.5 |
| Material | Stainless Steel |
| Mount Hole Diameter (Decimal Inch) | 0.2500 |
| Flange Thickness (mm) | 5.80 |
| Height Above Flange (mm) | 7.00 |
| Overall Height (mm) | 13.00 |
| Number of Mount Holes | 1 |
| Thread Length Below Base (mm) | 7.30 |
