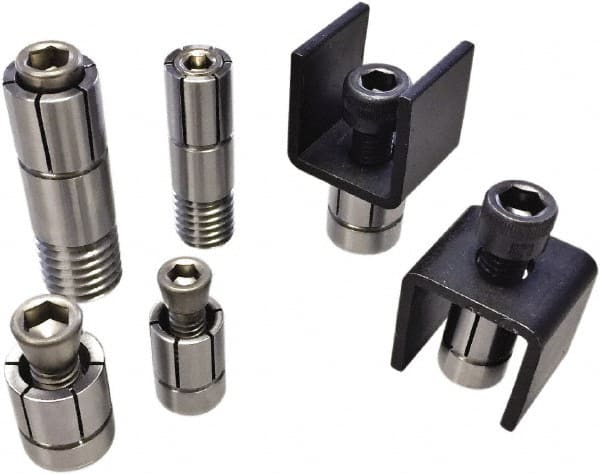

Mitee-Bite - 0.0625 to 0.03" Expansion Diam, 2,500 Lb Holding Force, 5/16-18 Mounting Screw, Stainless Steel ID Expansion Clamp - 1/16" Flange Diam, 1/16" Flange Thickness, 1/2" Mount Hole Diam, 1 Mount Hole, 1-7/8" Overall Height
Item #: 42286286
Brand: Mitee-Bite
Model #: 31860
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is made of iron and chromium and is resistant to rust and corrosion. It offers high tensile strength and can be used in several environments.
| Product Specifications | |
|---|---|
| Flange Diameter (Decimal Inch) | 0.0625 |
| Maximum Expansion Diameter (Decimal Inch) | 0.0300 |
| Minimum Expansion Diameter (Decimal Inch) | 0.0625 |
| Holding Force (Lb.) | 2500.00 |
| Mounting Screw Thread Size | 5/16-18 |
| Material | Stainless Steel |
| Mount Hole Diameter (Decimal Inch) | 0.5000 |
| Flange Thickness (Decimal Inch) | 0.0625 |
| Expansion Height (Decimal Inch) | 0.6200 |
| Overall Height (Decimal Inch) | 1.8750 |
| Number of Mount Holes | 1 |
| Thread Length Below Base (Decimal Inch) | 0.6200 |
