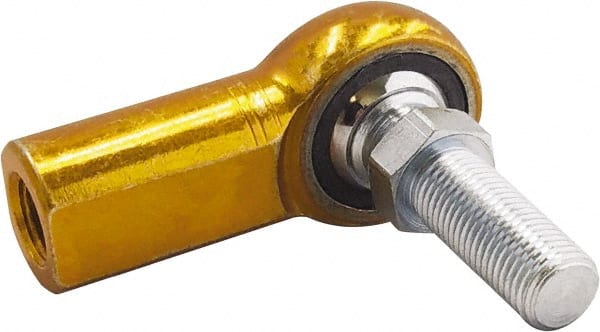

Made in USA - 5/8" ID, 1-1/2" Max OD, 7,400 Lb Max Static Cap, Female Spherical Rod End with Stud - 5/8-18 RH, 1" Shank Diam, 1-3/8" Shank Length, Carbon Steel with Plastic Raceway
Item #: 42307199
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.6250 |
| Inside Diameter (Inch) | 5/8 |
| Style | Female Rod End w/ Stud |
| Maximum Outside Diameter (Decimal Inch) | 1.5000 |
| Maximum Outside Diameter (Inch) | 1-1/2 |
| Maximum Static Load Capacity (Pounds) | 7400.0 |
| Width (Inch) | 3/4 |
| Width (Decimal Inch) | 0.7500 |
| Thread Size | 5/8-18 |
| Material | Carbon Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Raceway Material | Plastic |
| Shank Length (Decimal Inch) | 1.3750 |
| Thread Direction | Right Hand |
