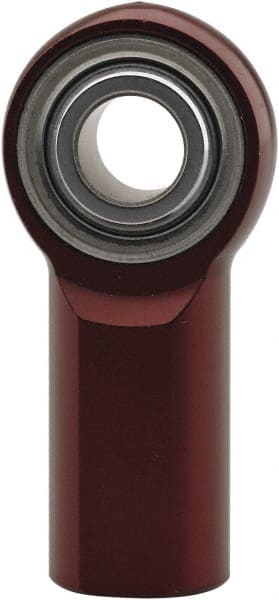

Made in USA - 5/16" ID, 7/8" Max OD, 2,890 Lb Max Static Cap, Plain Female Spherical Rod End - 5/16-24 LH, 1.3" Shank Diam, 11/16" Shank Length, Aluminum with Steel Raceway
Item #: 42307959
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3125 |
| Inside Diameter (Inch) | 5/16 |
| Style | Plain Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.8750 |
| Maximum Outside Diameter (Inch) | 7/8 |
| Maximum Static Load Capacity (Pounds) | 2890.0 |
| Width (Inch) | 7/16 |
| Width (Decimal Inch) | 0.4375 |
| Thread Size | 5/16-24 |
| Material | Aluminum |
| Shank Diameter (Decimal Inch) | 1.3000 |
| Raceway Material | Steel |
| Shank Length (Decimal Inch) | 0.6870 |
| Thread Direction | Left Hand |
