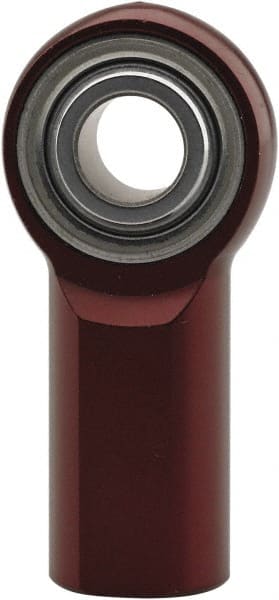

Made in USA - 1/4" ID, 3/4" Max OD, 2,592 Lb Max Static Cap, Plain Female Spherical Rod End - 1/4-28 LH, 7/8" Shank Diam, 11/16" Shank Length, Aluminum with Steel Raceway
Item #: 42307967
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.2500 |
| Inside Diameter (Inch) | 1/4 |
| Style | Plain Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.7500 |
| Maximum Outside Diameter (Inch) | 3/4 |
| Maximum Static Load Capacity (Pounds) | 2592.0 |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Thread Size | 1/4-28 |
| Material | Aluminum |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Raceway Material | Steel |
| Shank Length (Decimal Inch) | 0.6870 |
| Thread Direction | Left Hand |
