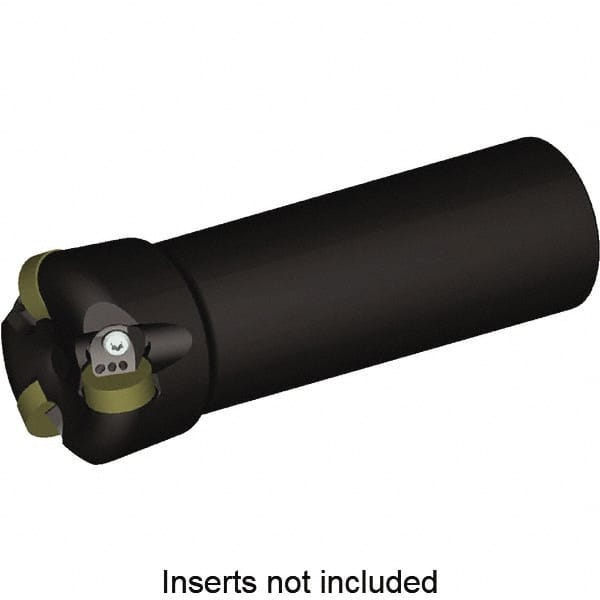

Kennametal - 1" Cutting Diam, 1-1/4" Shank Diam, 1-1/2" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RNGN120400 Insert, KCRA150RN4303C125L400 Toolholder, Steel
Item #: 42321828
Brand: Kennametal
Model #: 5703935
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 3 |
| Insert Style | RNGN120400 |
| Toolholder Style | KCRA150RN4303C125L400 |
| Series | KCRA |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Insert Holding Method | Wedge Clamp |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Head Length (mm) | 23.71 |
| Head Length (Decimal Inch) | 0.9340 |
| Shank Length (mm) | 77.89 |
| Shank Length (Decimal Inch) | 3.0660 |
| Maximum RPM | 28700 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
