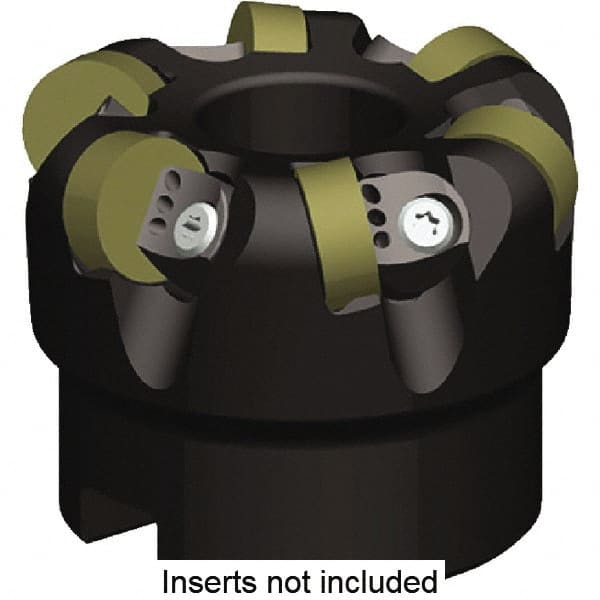

Kennametal - 50mm Cut Diam, 1/4" Max Depth, 22mm Arbor Hole, 6 Inserts, RNGN120400 Insert Style, Indexable Copy Face Mill - KCRA Cutter Style, 23,700 Max RPM, 40mm High, Series KCRA
Item #: 42323394
Brand: Kennametal
Model #: 5704055
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 40.00 |
| Series | KCRA |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RNGN120400 |
| Cutter Style | KCRA |
| Through Coolant | No |
| Maximum RPM | 23700 |
| Insert Holding Method | Wedge Clamp |
| Hub Diameter (Decimal Inch) | 1.6540 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 1.8930 |
| Maximum Cutting Diameter (Decimal Inch) | 1.893 |
