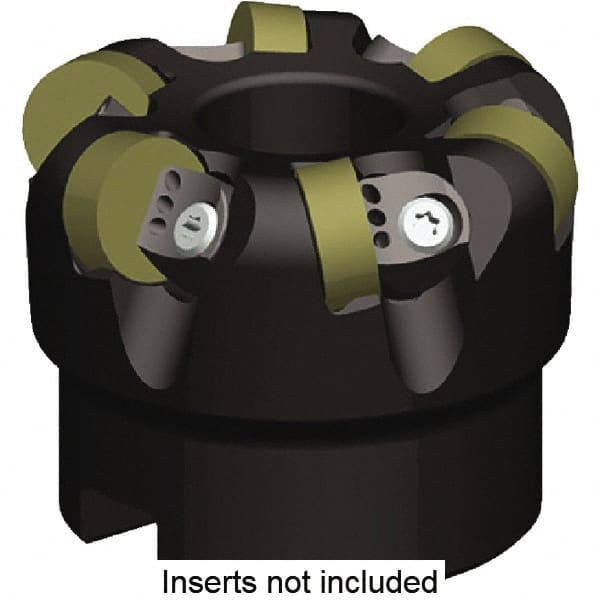

Kennametal - 3" Cut Diam, 1/4" Max Depth, 1" Arbor Hole, 11 Inserts, RNGN120400 Insert Style, Indexable Copy Face Mill - KCRA Cutter Style, 18,100 Max RPM, 2 High, Series KCRA
Item #: 42323428
Brand: Kennametal
Model #: 5704051
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | KCRA |
| Number of Cutter Inserts | 11 |
| Insert Compatibility | RNGN120400 |
| Cutter Style | KCRA |
| Through Coolant | No |
| Maximum RPM | 18100 |
| Insert Holding Method | Wedge Clamp |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 2.9130 |
| Maximum Cutting Diameter (Decimal Inch) | 2.913 |
