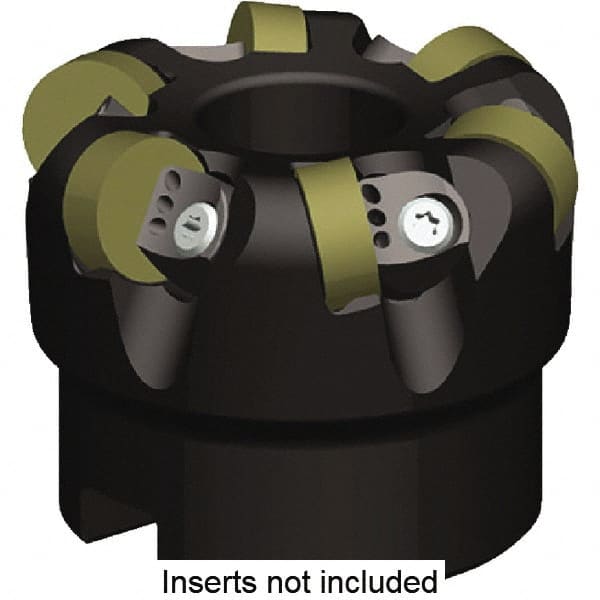

Kennametal - 2-1/2" Cut Diam, 1/4" Max Depth, 3/4" Arbor Hole, 6 Inserts, RNGN120400 Insert Style, Indexable Copy Face Mill - KCRA Cutter Style, 20,300 Max RPM, 1-3/4 High, Series KCRA
Item #: 42323451
Brand: Kennametal
Model #: 5703938
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | KCRA |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RNGN120400 |
| Cutter Style | KCRA |
| Through Coolant | No |
| Maximum RPM | 20300 |
| Insert Holding Method | Wedge Clamp |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 2.4180 |
| Maximum Cutting Diameter (Decimal Inch) | 2.418 |
