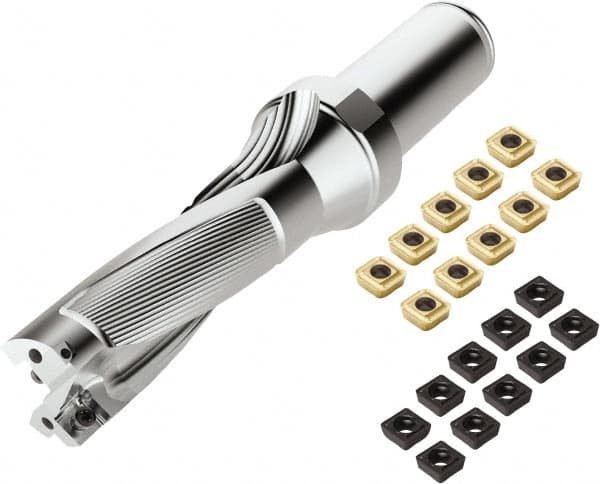

Seco - 2.63" Max Drill Depth, 3xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Weldon Flat Shank
Item #: 42361097
Brand: Seco
Model #: 03171447
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (Inch) | 7/8 |
| Maximum Drill Depth (Decimal Inch) | 2.6300 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 71.80 |
| Insert Compatibility (Outside or Peripheral) | SCGX060204 |
| Insert Compatibility | SPGX0703 |
| Series | PerfoMAX |
