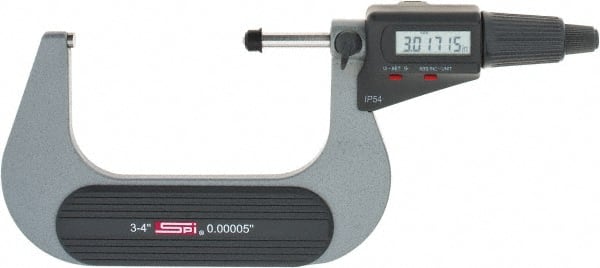

SPI - 3 to 4" Range, 0.00005" Resolution, Standard Throat IP54 Electronic Outside Micrometer - 0.0002" Accuracy, Friction Thimble, Carbide-Tipped Face, LR44 Battery, Includes NIST Traceable Certification of Inspection
Item #: 42416081
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
Friction thimbles offer a smooth measuring operation and resist shock. They do not offer audible feedback, but are designed to be closer to the operator's hand.
| Product Specifications | |
|---|---|
| Type | Standard |
| Minimum Measurement (Decimal Inch) | 3.0000 |
| Minimum Measurement (mm) | 75.00 |
| Maximum Measurement (mm) | 100.00 |
| Maximum Measurement (Decimal Inch) | 4.0000 |
| Thimble Type | Friction |
| Traceability Certification Included | NIST |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Throat Depth (Inch) | 2-1/4 |
| Throat Depth (Decimal Inch) | 2.2500 |
| Accuracy Plus/Minus (mm) | 0.0050 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000200 |
| Water Resistance Rating | IP54 |
| Rotating Spindle | Yes |
| Data Output | No |
| Data Output | No |
| Measuring Face Material | Carbide-Tipped |
| Battery Type | LR44 |
| Includes | Battery |
