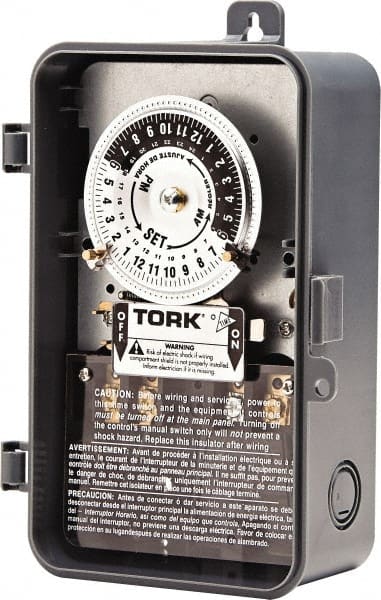

TORK nsi - Electrical Timers & Timer Switches Timer/Switch Type: Mechanical Timer Switch Recommended Environment: Indoor
Item #: 42580852
Brand: TORK nsi
Model #: 1101B
Exact Tooling IR#: 04
Product Specifications
Electrical Timers & Timer Switches; Timer/Switch Type: Mechanical Timer Switch ; Recommended Environment: Indoor ; Timing Range: 20 min - 22.75 hr ; Number of Programmable Events: 12 ON/OFF ; Minimum On/Off Time (sec.): 1 ; Minimum On/Off Time (Minutes): 20
| Timer/Switch Type | Mechanical Timer Switch |
| Recommended Environment | Indoor |
| Timing Range | 20 min - 22.75 hr |
| Number of Programmable Events | 12 ON/OFF |
| Minimum On/Off Time (sec.) | 1 |
| Minimum On/Off Time (Minutes) | 20 |
| NEMA Rating | 1 |
| Voltage | 120 |
| Amperage | 40 |
| Horsepower (HP) | 2 |
| Number of Circuits | 1 |
| Contact Form | SPST |
| Frequency Rating (Hz) | 60 |
| Mounting Type | Surface Mount |
| Display Type | Analog |
| Standards Met | cULus Listed |
| Wattage | 4800 |
| Width (Inch) | 4.6875 |
| Height (Inch) | 7.9375 |
| Depth (mm) | 74.61 |
| Number of Modes | 12 |
| Number of Poles | 1 |
