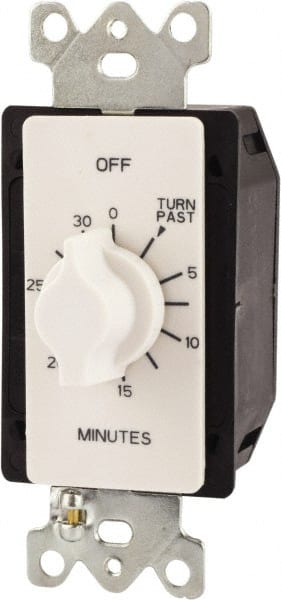

TORK nsi - Electrical Timers & Timer Switches Timer/Switch Type: Spring-wound Mechanical Timer Recommended Environment: Indoor
Item #: 42581249
Brand: TORK nsi
Model #: A530MW
Exact Tooling IR#: 04
Product Specifications
Electrical Timers & Timer Switches; Timer/Switch Type: Spring-wound Mechanical Timer ; Recommended Environment: Indoor ; Timing Range: 0 min - 30 min ; Minimum On/Off Time (sec.): 1 ; Minimum On/Off Time (Minutes): 30 ; Voltage: 125/250/277 VAC
| Timer/Switch Type | Spring-wound Mechanical Timer |
| Recommended Environment | Indoor |
| Timing Range | 0 min - 30 min |
| Minimum On/Off Time (sec.) | 1 |
| Minimum On/Off Time (Minutes) | 30 |
| Voltage | 125/250/277 VAC |
| Amperage | 20A @ 125 VAC; 10A @ 250 VAC; 10A @ 277 VAC |
| Horsepower (HP) | 1 @ 125 VAC; 2 @ 250 VAC |
| Number of Circuits | 1 |
| Contact Form | SPDT |
| Frequency Rating (Hz) | 50/60 |
| Mounting Type | Surface Mount |
| Display Type | Analog |
| Standards Met | cULus Listed |
| Wattage | 2500 |
| Width (Inch) | 1.7450 |
| Height (Inch) | 2.7060 |
| Depth (mm) | 35.81 |
| Number of Modes | 48 |
| Number of Poles | 1 |
