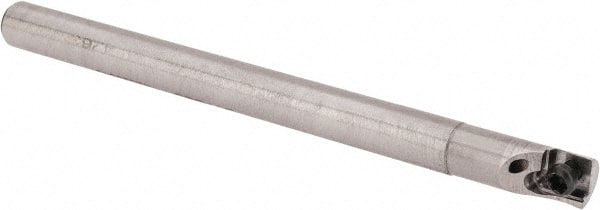

Hertel - 0.208" Min Bore Diam, 2-1/2" OAL, 3/16" Shank Diam, HBBC Indexable Boring Bar - 3/4" Max Bore Depth, CD.. Insert, Screw Holding Method
Item #: 42639849
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | HBBC |
| Minimum Bore Diameter (Decimal Inch) | 0.2080 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 3/4 |
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Insert Compatibility | CD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
