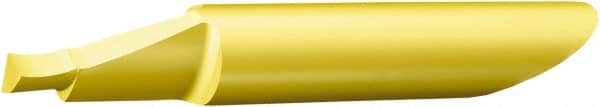

Sandvik Coromant - 2.95mm Groove Width, 0.2mm Min Hole Diam, 6mm Max Hole Depth, Face Grooving Tool - 6mm Projection, 42.5mm OAL, 0.15mm Radius, Solid Carbide
Item #: 42653915
Brand: Sandvik Coromant
Model #: 5849013
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Groove Width (Decimal Inch) | 0.1161 |
| Groove Width (mm) | 2.95 |
| Projection (Decimal Inch) | 0.2362 |
| Projection (mm) | 6.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.0079 |
| Minimum Hole Diameter (mm) | 0.20 |
| Maximum Hole Depth (Decimal Inch) | 0.2362 |
| Maximum Hole Depth (mm) | 6.00 |
| Overall Length (Decimal Inch) | 1.6732 |
| Overall Length (mm) | 42.50 |
| Radius (Decimal Inch) | 0.0059 |
| Radius (mm) | 0.15 |
| Manufacturer Grade | 1025 |
