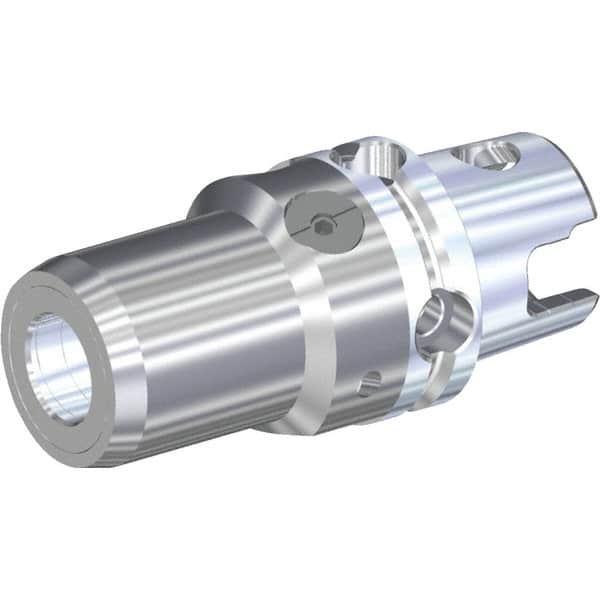

Kennametal - KM50TS Modular Connection, 8mm Hole Diam, Hydraulic Tool Holder/Chuck - 28mm Nose Diam, 65mm Projection, 27mm Clamp Depth, Through Coolant
Item #: 42682013
Brand: Kennametal
Model #: 4007724
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | KM50TS |
| Hole Diameter (Decimal Inch) | 0.3150 |
| Hole Diameter (mm) | 8.00 |
| Nose Diameter (Decimal Inch) | 1.1024 |
| Nose Diameter (mm) | 28.00 |
| Projection (Decimal Inch) | 2.5591 |
| Projection (mm) | 65.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 27.00 |
| Clamping Depth (Decimal Inch) | 1.0630 |
