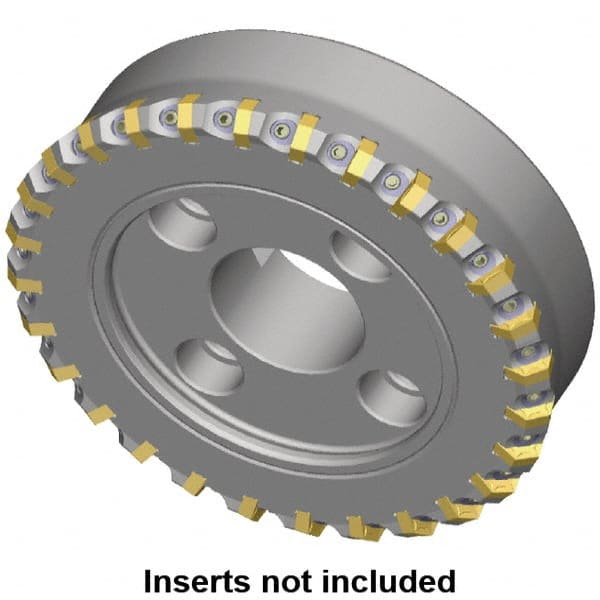

Kennametal - 134mm Cut Diam, 40mm Arbor Hole, 8mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 15 Inserts, HNG. 0905... Insert, Right Hand Cut, 15 Flutes, Series HexaCut
Item #: 42684886
Brand: Kennametal
Model #: 2016169
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 134.00 |
| Cutting Diameter (Decimal Inch) | 5.2756 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 60 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | HNG. 0905... |
| Series | HexaCut |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Wedge |
| Number of Flutes | 15 |
| Maximum Body Diameter (Decimal Inch) | 4.9213 |
| Maximum RPM | 3000 |
| Cutting Direction | Right Hand |
