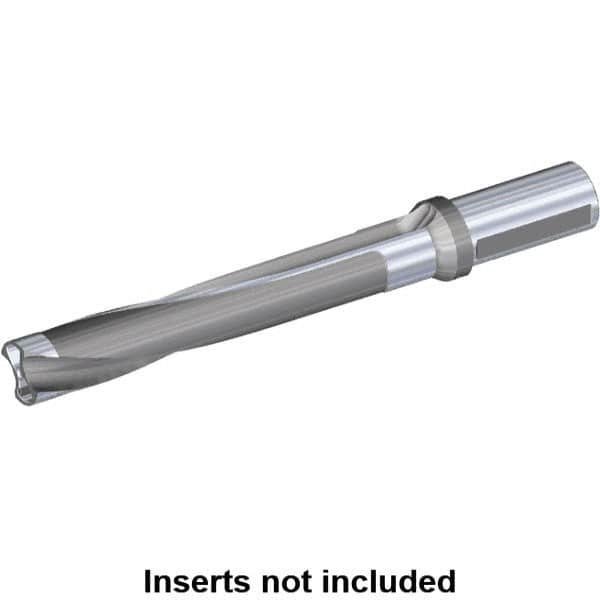

Kennametal - Series KSEM Plus, Head Connection FDS36, 3xD, 1-1/2" Shank Diam, Drill Body - 97.03mm Drill Body Length to Flange, SSF Toolholder, 10.29" OAL, 117mm Drill Body Length, 3.82" Flute Length, Weldon Flat Shank, Through Coolant
Item #: 42687871
Brand: Kennametal
Model #: 3952343
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS36 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Drill Body Length to Flange (mm) | 97.03 |
| Drill Body Length to Flange (Decimal Inch) | 3.8200 |
| Toolholder Style | SSF |
| Overall Length (Decimal Inch) | 10.2900 |
| Gage Length (mm) | 117.00 |
| Gage Length (Decimal Inch) | 4.6063 |
| Flute Length (Decimal Inch) | 3.8200 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 3.7500 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 2 |
| Includes | Clamping Screws; Pipe Plug |
