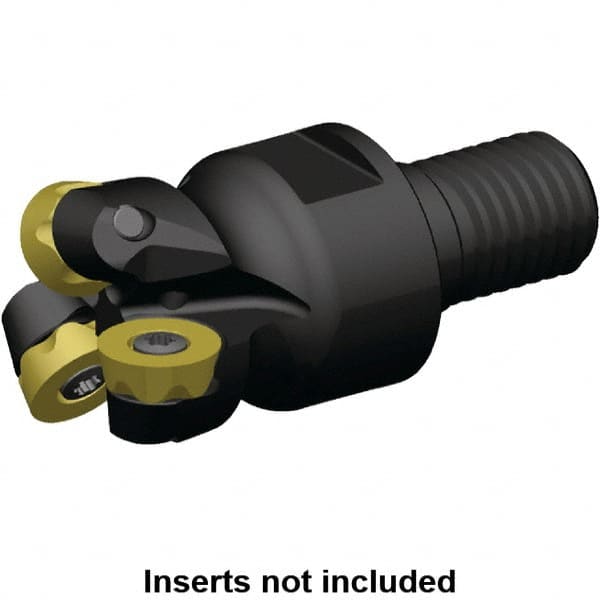

Kennametal - 40mm Cutting Diam, 8mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RP.T 1605M0.. Insert, KSRM Toolholder, Through Coolant
Item #: 42687905
Brand: Kennametal
Model #: 4042581
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP.T 1605M0.. |
| Toolholder Style | KSRM |
| Series | KSRM |
| Overall Length (mm) | 45.00 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 24.00 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Maximum RPM | 27300 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9449 |
| Modular Connection Size | M16 |
