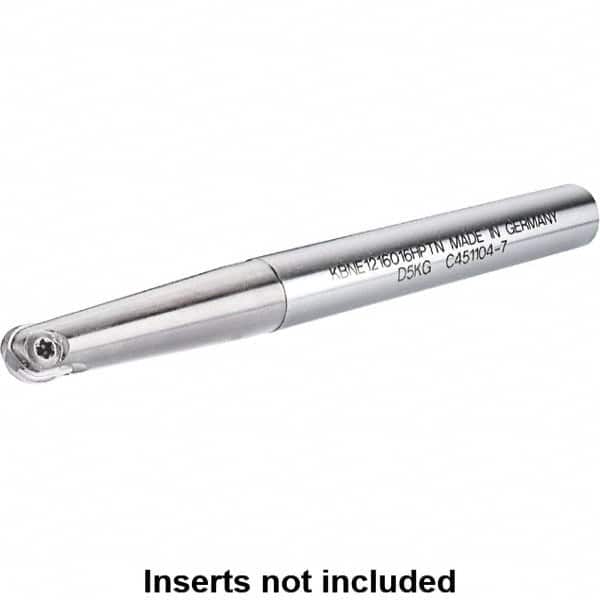

Kennametal - 16mm Cut Diam, 8mm Max Depth of Cut, 20mm Shank Diam, 175mm OAL, Indexable Ball Nose End Mill - 90mm Head Length, Straight Shank, KDMB Toolholder, KDMB 16.. Insert
Item #: 42687939
Brand: Kennametal
Model #: 3964265
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KDMB 16.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 175.00 |
| Overall Length (Decimal Inch) | 6.8898 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 1 |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Maximum RPM | 40000 |
