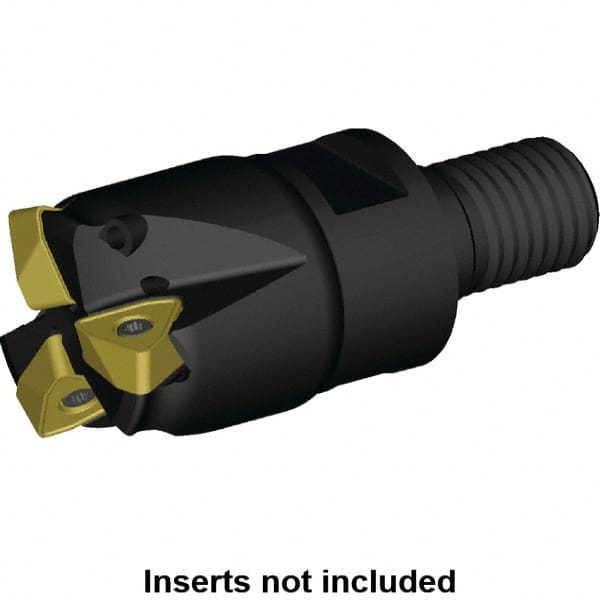

Kennametal - 1-1/2" Cut Diam, 0.059" Max Depth, M16 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, WOEJ090512.. Insert, KF2X Toolholder, Through Coolant
Item #: 42688960
Brand: Kennametal
Model #: 4109579
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 4 |
| Insert Style | WOEJ090512.. |
| Toolholder Style | KF2X |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8690 |
| Maximum RPM | 27400 |
| Through Coolant | Through Coolant |
