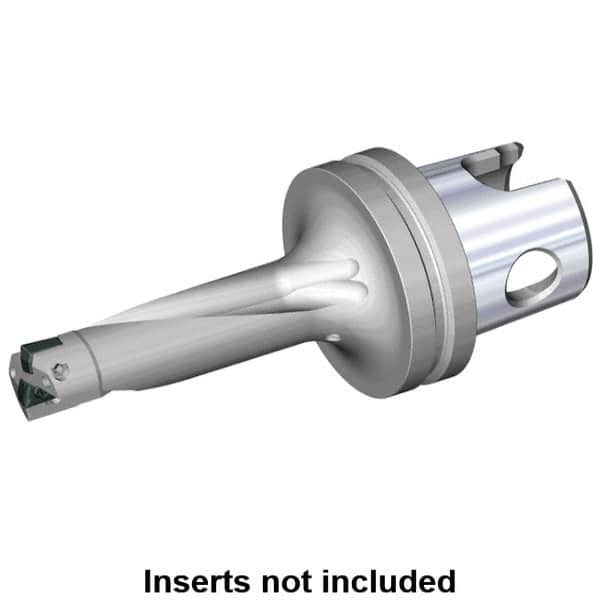

Kennametal - 1.78" Max Drill Depth, 3xD, 0.5941" Diam, Indexable Insert Drill - KM50 Modular Connection Shank
Item #: 42689224
Brand: Kennametal
Model #: 4122572
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (Decimal Inch) | 0.5941 |
| Maximum Drill Depth (Decimal Inch) | 1.7800 |
| Shank Type | Modular Connection |
| Modular Connection Size | KM50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Diameter (Decimal Inch) | 0.6340 |
| Overall Length/Projection (Decimal Inch) | 3.0100 |
| Insert Compatibility | DFR 0202.. |
| Series | Drill-Fix |
