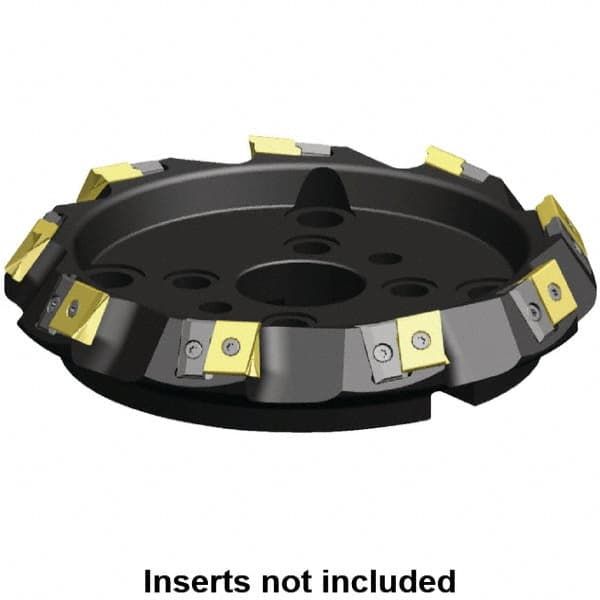

Kennametal - 125mm Cut Diam, 40mm Arbor Hole, 21.4mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 6 Inserts, LN.U 2210... Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series MEGA60
Item #: 42689422
Brand: Kennametal
Model #: 4147458
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 60 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | LN.U 2210... |
| Series | MEGA60 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 21.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.8425 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Maximum Body Diameter (Decimal Inch) | 5.9055 |
| Maximum RPM | 11130 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 6.1024 |
