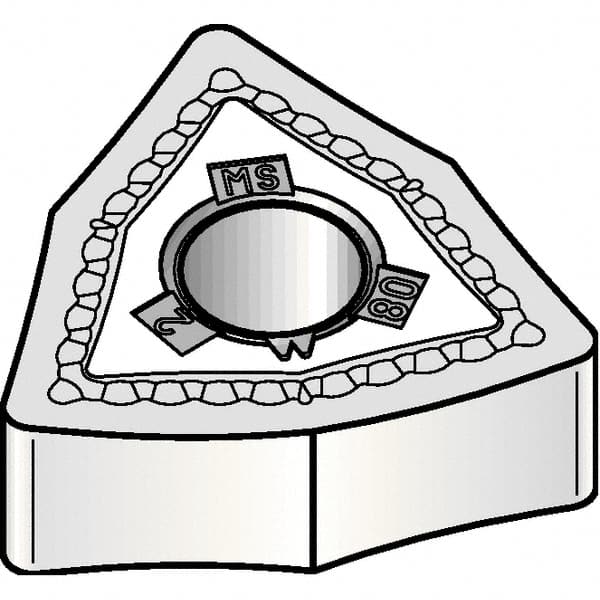

Kennametal - WNMG431 MS Grade KCU10 Carbide Turning Insert - TiAlN Finish, 80° Trigon, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 42690826
Brand: Kennametal
Model #: 5090893
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCU10 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Chip Breaker | MS |
| Insert Length (Decimal Inch) | 0.3420 |
| ISO Number | WNMG080404MS |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Series | Kenloc |
| Maximum Depth of Cut (mm) | 5.08 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
