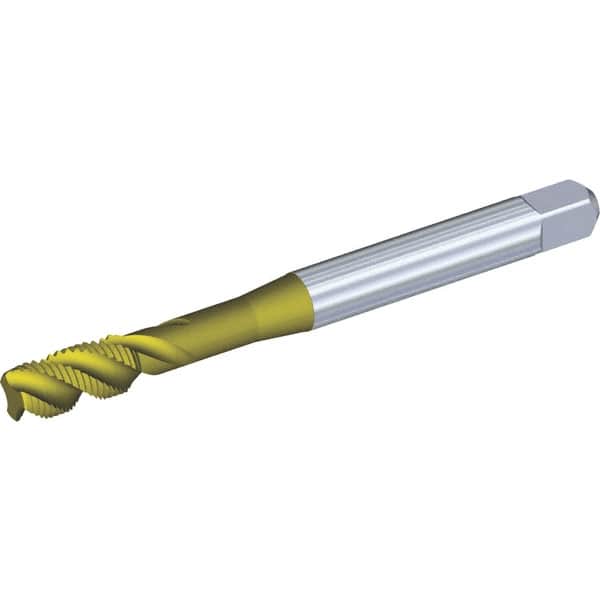

Kennametal - #6-40 UNF 3 Flute 2BX Modified Bottoming Spiral Flute Tap - Powdered Metal, TiCN/TiN Finish, 56mm OAL, Right Hand Flute, Right Hand Thread, Series T630
Item #: 42692483
Brand: Kennametal
Model #: 5211981
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #6-40 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2BX |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Material Grade | KP6525 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.3543 |
| Thread Length (mm) | 9.00 |
| Flute Type | Fast Spiral |
| Series/List | T630 |
| Tapping Depth (Decimal Inch) | 0.7874 |
| Tapping Depth (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Material Application | Cast Aluminum with Silicon; Cast Iron; Steel |
