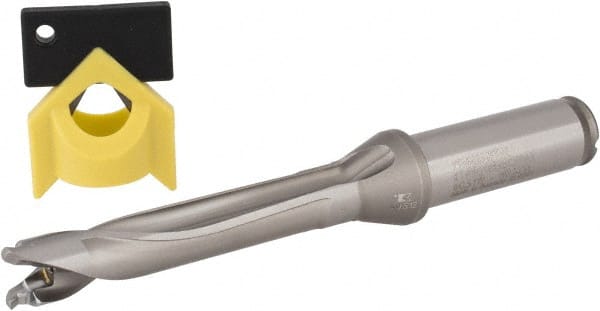

Kennametal - 13.1 to 13.49mm Diam, 5xD, 67.56mm Max Depth, 15.88mm Shank Diam, 3.41" Flute, 139.95mm OAL, Replaceable Tip Drill - P Seat Size, KTIP Toolholder, Series KenTIP
Item #: 42693549
Brand: Kennametal
Model #: 5307710
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 13.10 |
| Minimum Drill Diameter (Decimal Inch) | 0.5156 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.6600 |
| Maximum Drill Depth (mm) | 67.56 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | P |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.0890 |
| Flute Length (Decimal Inch) | 3.4100 |
| Overall Length (mm) | 139.95 |
| Overall Length (Decimal Inch) | 5.5100 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 1.8900 |
