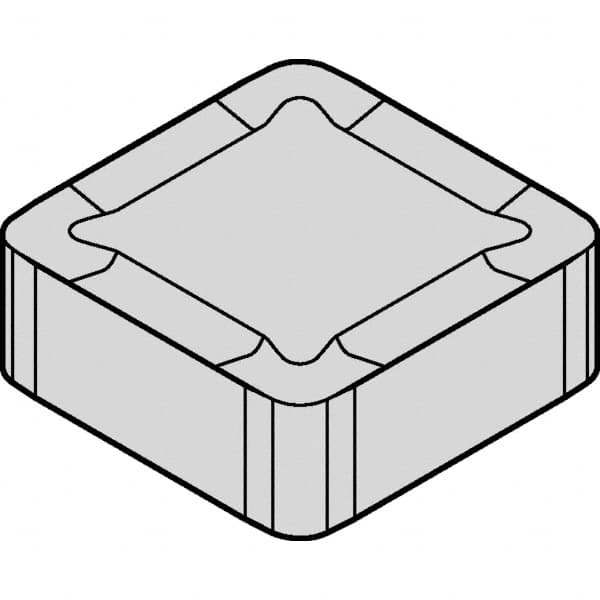

Kennametal - SNPF433 SNGP Grade KCK15 Carbide Turning Insert - TiCN/Al2O3 Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 42701326
Brand: Kennametal
Model #: 5419993
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNPF |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KCK15 |
| Coating | TiCN/Al2O3 |
| Material Grade | C3/C4 |
| Chip Breaker | SNGP |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Shape | Square |
