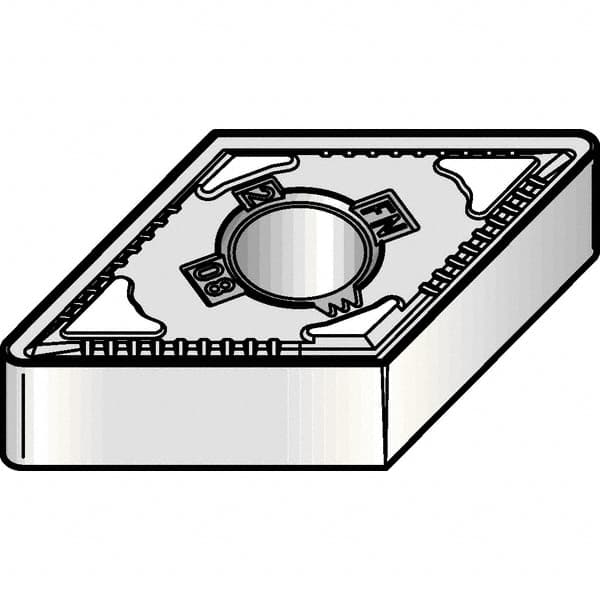

Kennametal - DNMG443 FN Grade KCP10B Carbide Turning Insert - TiCN/Al2O3/TiOCN Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 42706465
Brand: Kennametal
Model #: 5531908
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 443 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KCP10B |
| Coating | TiCN/Al2O3/TiOCN |
| Chip Breaker | FN |
| Insert Length (Decimal Inch) | 0.6100 |
| ISO Number | DNMG150612FN |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Series | Kenloc |
| Maximum Depth of Cut (mm) | 2.54 |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
