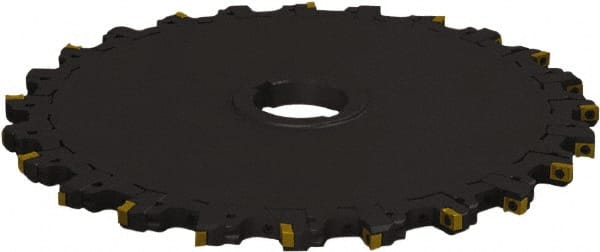

Seco - Arbor Hole Connection, 0.3937" Cutting Width, 3.3858" Depth of Cut, 250mm Cutter Diam, 1.9685" Hole Diam, 9 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK.. 06.. Insert, Neutral Cutting Direction
Item #: 42716548
Brand: Seco
Model #: 62557
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 86.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.3858 |
| Cutter Diameter (mm) | 250.00 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 9 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK.. 06.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 6000 |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Keyway Width (mm) | 12.00 |
| Radius | No |
| Cutter Body Width (mm) | 15.00 |
| Cutter Body Width (Decimal Inch) | 0.5906 |
