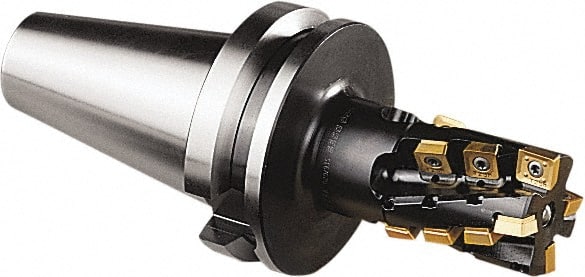

Seco - 50mm Cut Diam, 77mm Max Depth of Cut, 250mm OAL, Indexable Square Shoulder Helical End Mill - BT50 Taper Shank, 90° Lead Angle, Series Turbo
Item #: 42718767
Brand: Seco
Model #: 66231
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Taper Shank |
| Shank Taper Size | BT50 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 90 |
| Series | Turbo |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 77.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.0315 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R215.59 |
| Number of Flutes | 4 |
| Head Length (mm) | 148.00 |
| Head Length (Decimal Inch) | 5.8268 |
| Weldon Flat | No |
| Maximum RPM | 8300 |
