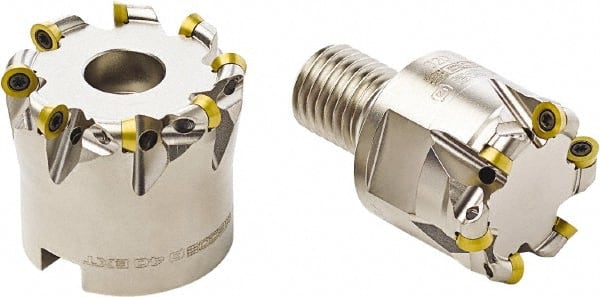

Seco - 35mm Cutting Diam, 3mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - RD.. 10T3 Insert, R217.29 Toolholder
Item #: 42718775
Brand: Seco
Model #: 05063
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 35.00 |
| Cutting Diameter (Decimal Inch) | 1.3780 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Insert Style | RD.. 10T3 |
| Toolholder Style | R217.29 |
| Overall Length (Decimal Inch) | 1.1020 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Minimum Cutting Diameter (mm) | 29.00 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Maximum RPM | 19200 |
| Minimum Cutting Diameter (Decimal Inch) | 1.1417 |
| Modular Connection Size | M16 |
