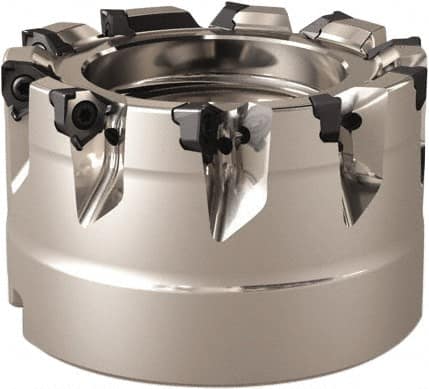

Seco - 6 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 4mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 40mm High, Series Square 6
Item #: 42718809
Brand: Seco
Model #: 81082
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | Square 6 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R220.96 |
| Cutting Rake Angle | -19 |
| Rake | Negative |
| Keyway Width (mm) | 6.30 |
| Keyway Width (Decimal Inch) | 0.2480 |
| Maximum RPM | 18600 |
