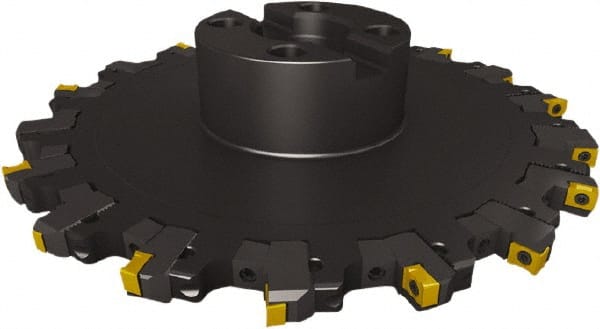

Seco - Shell Mount Connection, 5/16" Cutting Width, 2.2" Depth of Cut, 8" Cutter Diam, 1-1/2" Hole Diam, 7 Tooth Indexable Slotting Cutter - R335.18 Toolholder, LNK.. 05.. Insert, Neutral Cutting Direction
Item #: 42718965
Brand: Seco
Model #: 64772
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (Decimal Inch) | 2.2000 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 7 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK.. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 6700 |
| Minimum Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Cutting Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 2.0000 |
