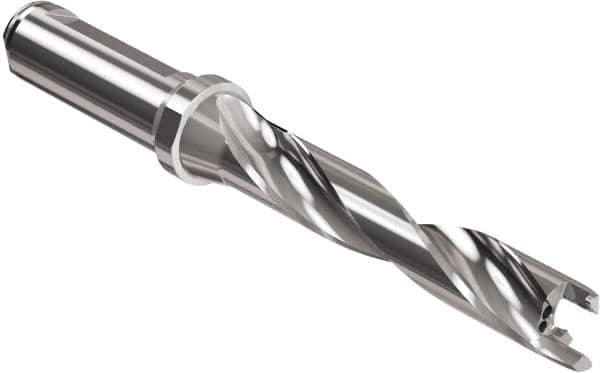

Seco - 13 to 13.99mm Diam, 5xD, 70mm Max Depth, 5/8" Shank Diam, 3.106" Flute, 5.508" OAL, Replaceable Tip Drill - SD405 Toolholder, Series Crownloc Plus
Item #: 42719443
Brand: Seco
Model #: 40150
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.7559 |
| Maximum Drill Depth (mm) | 70.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | SD405 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (Decimal Inch) | 3.1060 |
| Body Length (Decimal Inch) | 3.6180 |
| Overall Length (Decimal Inch) | 5.5080 |
| Shank Length (Decimal Inch) | 1.8900 |
