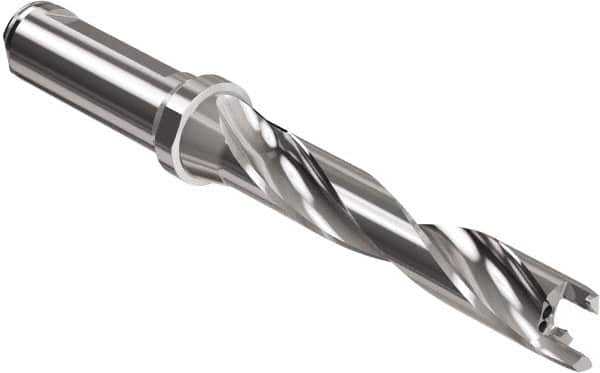

Seco - 12 to 12.49mm Diam, 5xD, 63mm Max Depth, 16mm Shank Diam, 71.2mm Flute, 131.2mm OAL, Replaceable Tip Drill - SD405 Toolholder, Series Crownloc Plus
Item #: 42719666
Brand: Seco
Model #: 40110
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.4803 |
| Maximum Drill Depth (mm) | 63.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD405 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 71.20 |
| Flute Length (Decimal Inch) | 2.8031 |
| Body Length (mm) | 83.20 |
| Body Length (Decimal Inch) | 3.2756 |
| Overall Length (mm) | 131.20 |
| Overall Length (Decimal Inch) | 5.1653 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
